Step 11.38 — Mount the plenum in the chamber¶
Step 39 of 67 · Chapter 11 — Skirts, panels, Clicky-Clack door, filtration
Gather for this segment — steps 11.38–11.43 (~15 min)
Fasteners, Tools & Misc box
- M3 roll-in T-nut ×2
- M3×12 SHCS ×2
- M3 hammerhead T-nut ×1
- M3×8 SHCS ×1
- M5 roll-in T-nut ×1
- M5×16 BHCS ×1
Printed parts
bowden_retainer×1 · bin 11-spoolspool_holder×1 · bin 11-spool
Tools and consumables
- PTFE tube, 4 mm OD, 3 mm ID, 1.2 m
- PTFE tube, the two 86 mm lengths
Already on the bench
- the plenum assembly
- the cartridge
- the kit's FILTER FAN extension lead
Parts:
- the plenum assembly · already on the bench
- M3 roll-in T-nut ×2 · Fasteners, Tools & Misc box
- M3×12 SHCS ×2 · Fasteners, Tools & Misc box
Do: Roll one M3 T-nut into the inside face of each bed extrusion, not the top slot, and bolt the plenum on with two M3×12 SHCS. The fan leads were cut to length for this position at 11.31.
Check
Plenum solid on the extrusions, sitting inboard and below the bed surface; nothing it can foul as the gantry descends; both screws snug.
What you're looking at

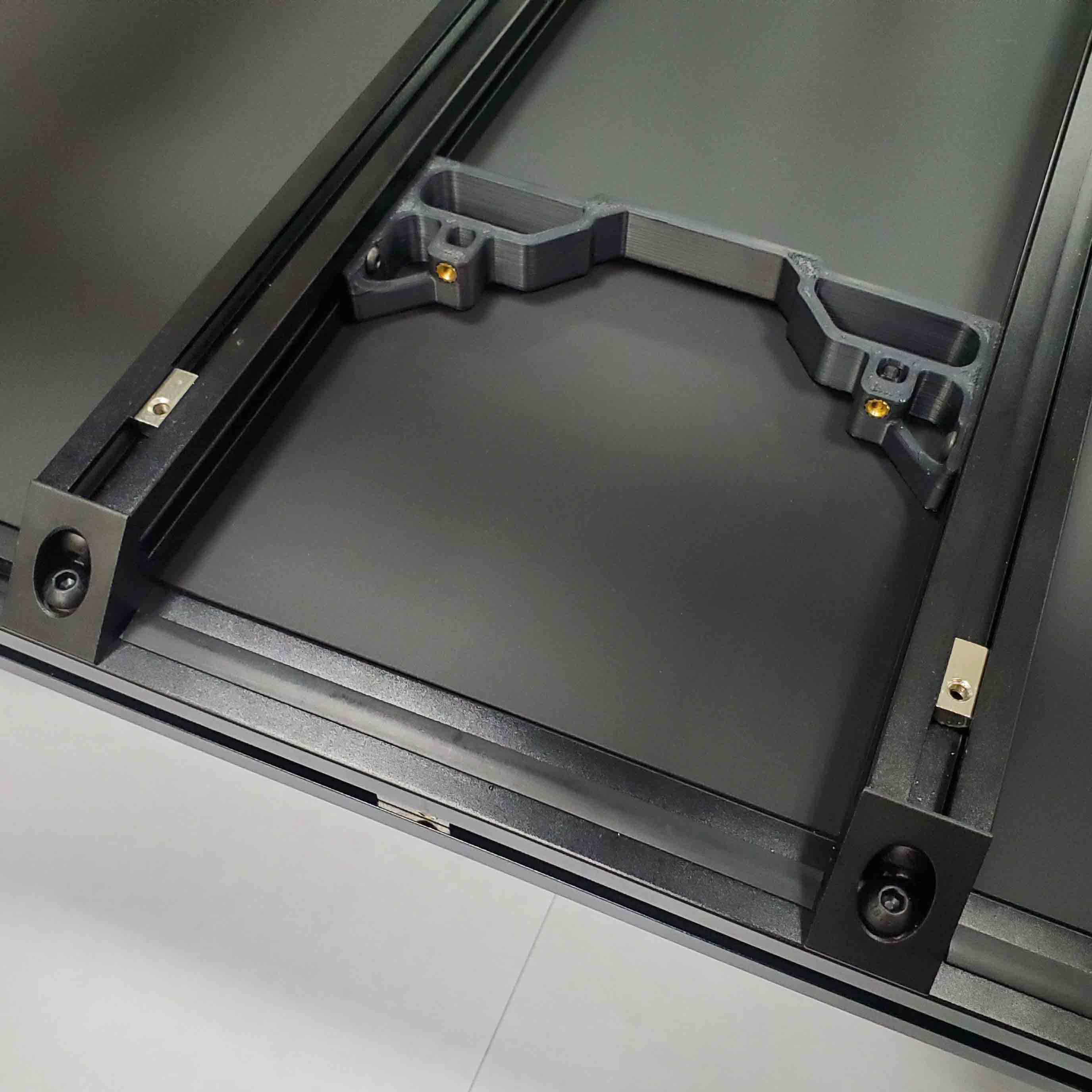

The plenum bolts to the inside faces of the two bed extrusions, low and inboard, where it is below the bed surface and out of the gantry's way. The photo is LDO's placement reference, with the two T-nuts already rolled in.
Source: LDO Nevermore V5 Duo guide § Installation for Voron V2.4 · LDO wiring photo nevermore_base_placement.jpg
