Batch B08 — Skirts and front modules

Time: 29.2 h · Sessions: 4 plate starts · Steps: 11

Start the chapter · Resume · Read the whole chapter on one page

StartBefore you start

Step B08.1Filament prep

Step B08.2Load plate B08-P1with a helper

Step B08.3Print plate B08-P1

Step B08.4Load plate B08-P2with a helper

Step B08.5Print plate B08-P2

Step B08.6Load plate B08-P3with a helper

Step B08.7Print plate B08-P3

Step B08.8Load plate B08-P4with a helper

Step B08.9Print plate B08-P4

Step B08.10Inspect

Step B08.11Sort into binswith a helper

Checkpoint B08Tick before moving on

Gather per session — what to lay out before each bench segment.

• Steps B08.1–B08.3 · ~5 min — 3 mm brim on both, already in the project · rear_center_skirt_350 — from bin 11-skirts · side_fan_support — 6.3 h, 99 g (PrusaSlicer 2.9.6 estimate) ×1 — from bin 11-skirts

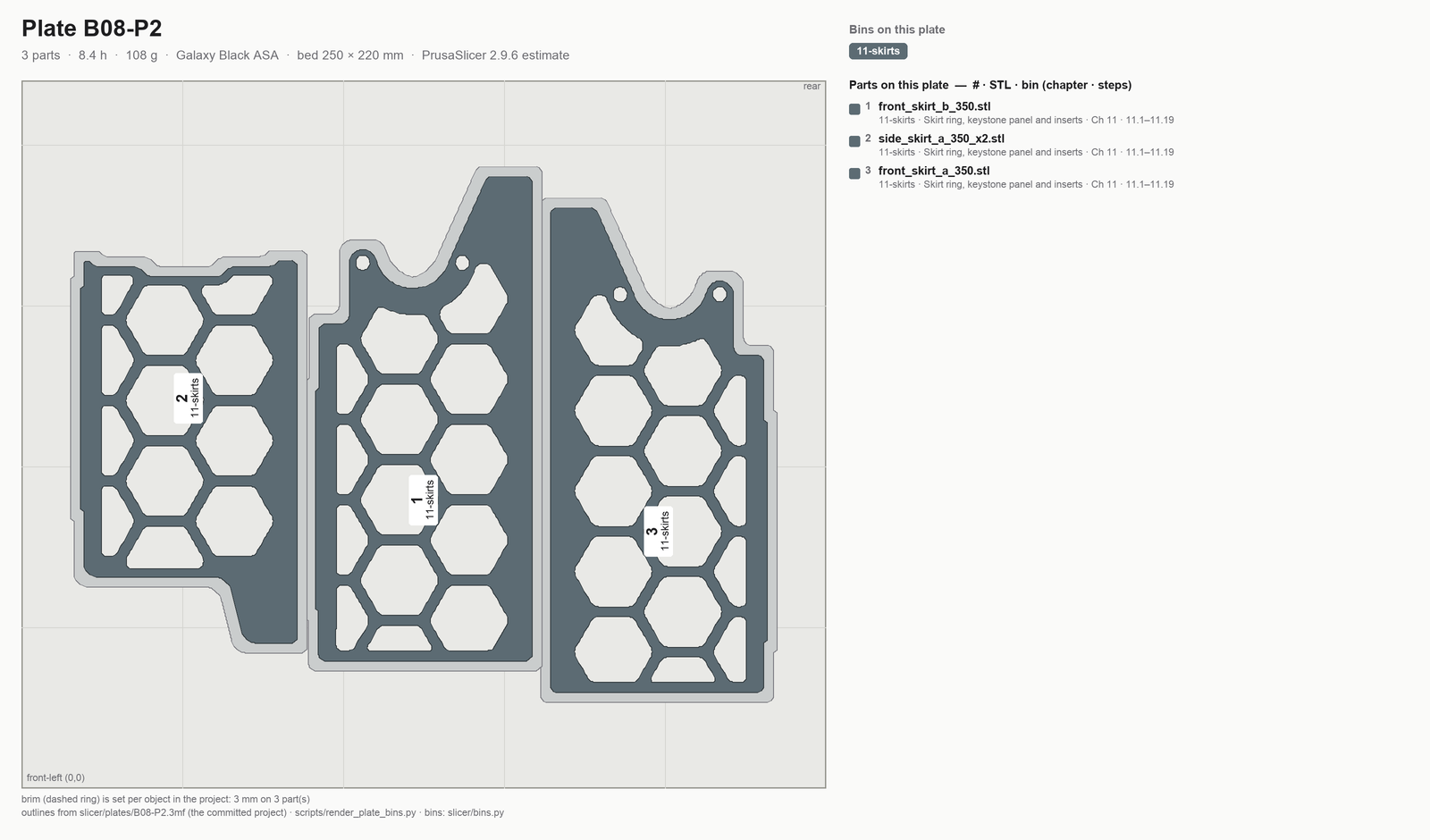

• Steps B08.4–B08.5 · ~5 min — 3 mm brim on all three, already in the project · front_skirt_a_350 — from bin 11-skirts · front_skirt_b_350 — from bin 11-skirts · side_skirt_a_350 — 8.4 h, 108 g (PrusaSlicer 2.9.6 estimate) ×1 — from bin 11-skirts

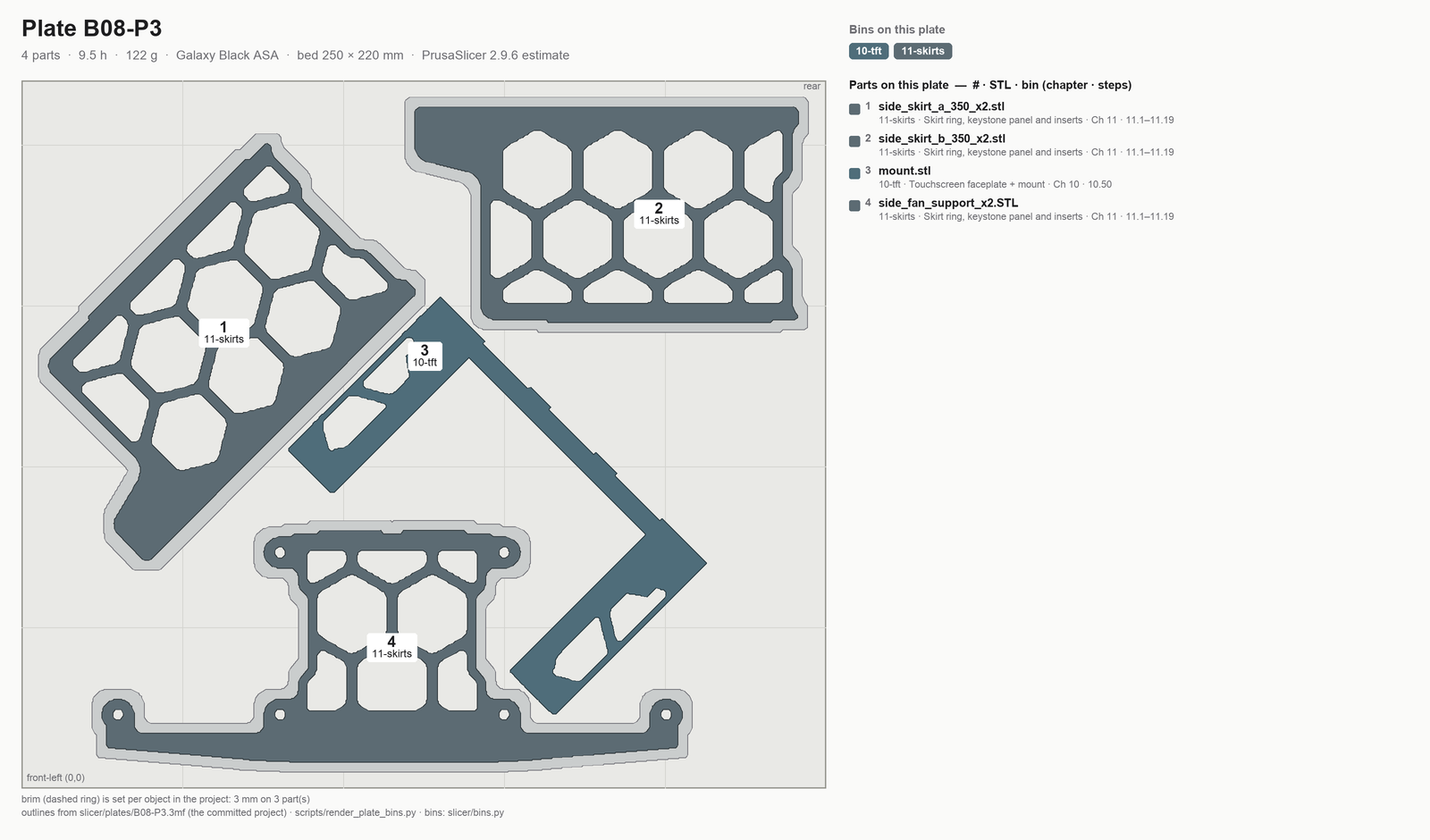

• Steps B08.6–B08.7 · ~5 min — 3 mm brim on the three skirt parts, none on the TFT mount, all as shipped in the project · side_fan_support ×1 — from bin 11-skirts · side_skirt_a_350 ×1 — from bin 11-skirts · side_skirt_b_350 ×1 — from bin 11-skirts · mount.stl — 9.5 h, 122 g (PrusaSlicer 2.9.6 estimate) — from bin 10-tft

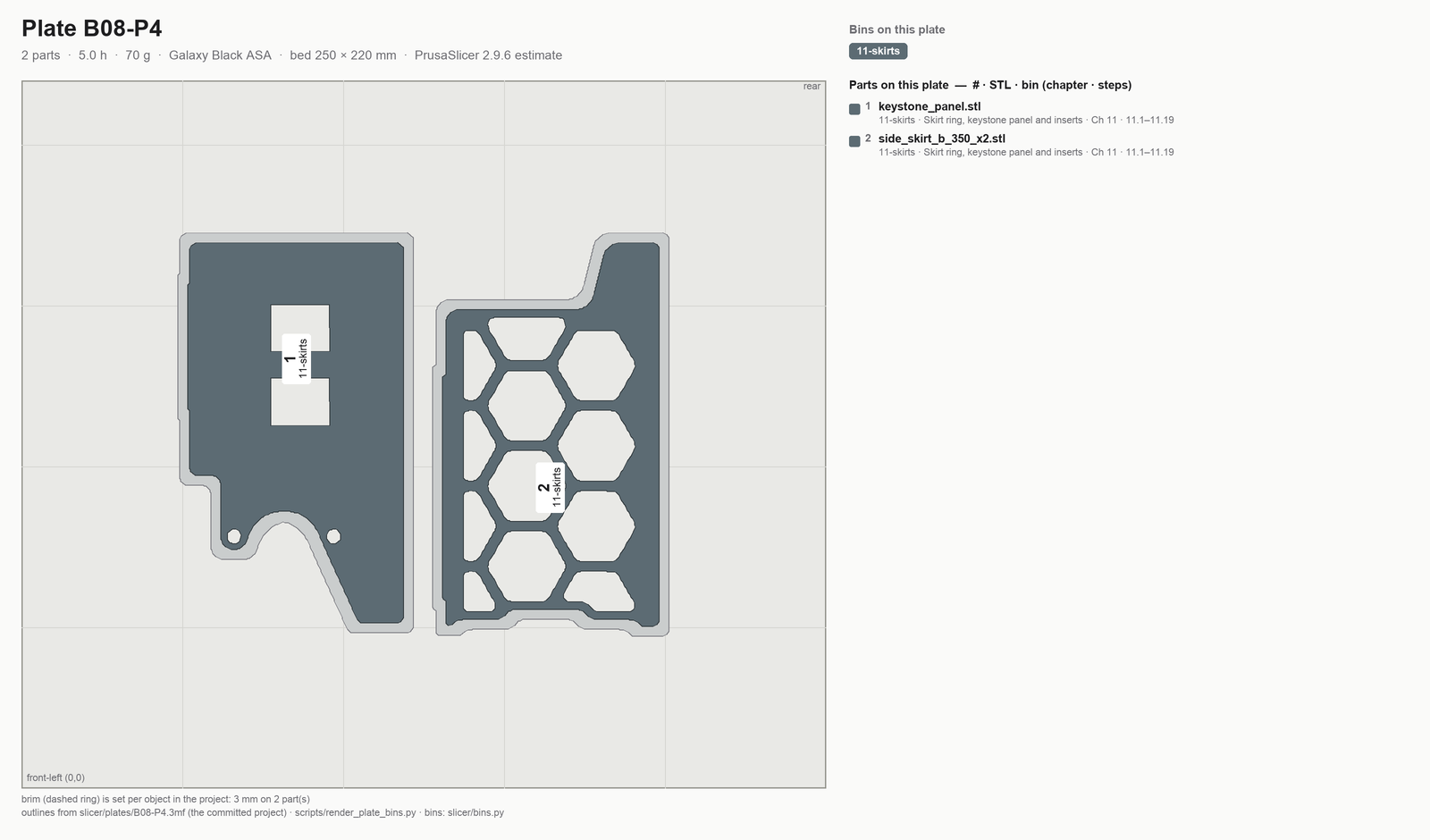

• Steps B08.8–B08.9 · ~5 min — 3 mm brim on both, already in the project · side_skirt_b_350 ×1 — from bin 11-skirts · keystone_panel — 5.0 h, 70 g (PrusaSlicer 2.9.6 estimate) — from bin 11-skirts
• Step B08.10 · ~20 min — nothing to lay out
• Step B08.11 · ~15 min — nothing to lay out
