Batch B01 — Z drive assemblies

Time: 22.8 h · Sessions: 2 plate starts · Steps: 8

Start the chapter · Resume · Read the whole chapter on one page

StartBefore you start

Step B01.1Filament prep

Step B01.2Load plate B01-P1with a helper

Step B01.3Pre-print checks

Step B01.4Print plate B01-P1

Step B01.5Load plate B01-P2with a helper

Step B01.6Print plate B01-P2

Step B01.7Inspectwith a helper

Step B01.8Sort into binswith a helper

NoteWhile a long plate runs

Checkpoint B01Tick before moving on

Gather per session — what to lay out before each bench segment.

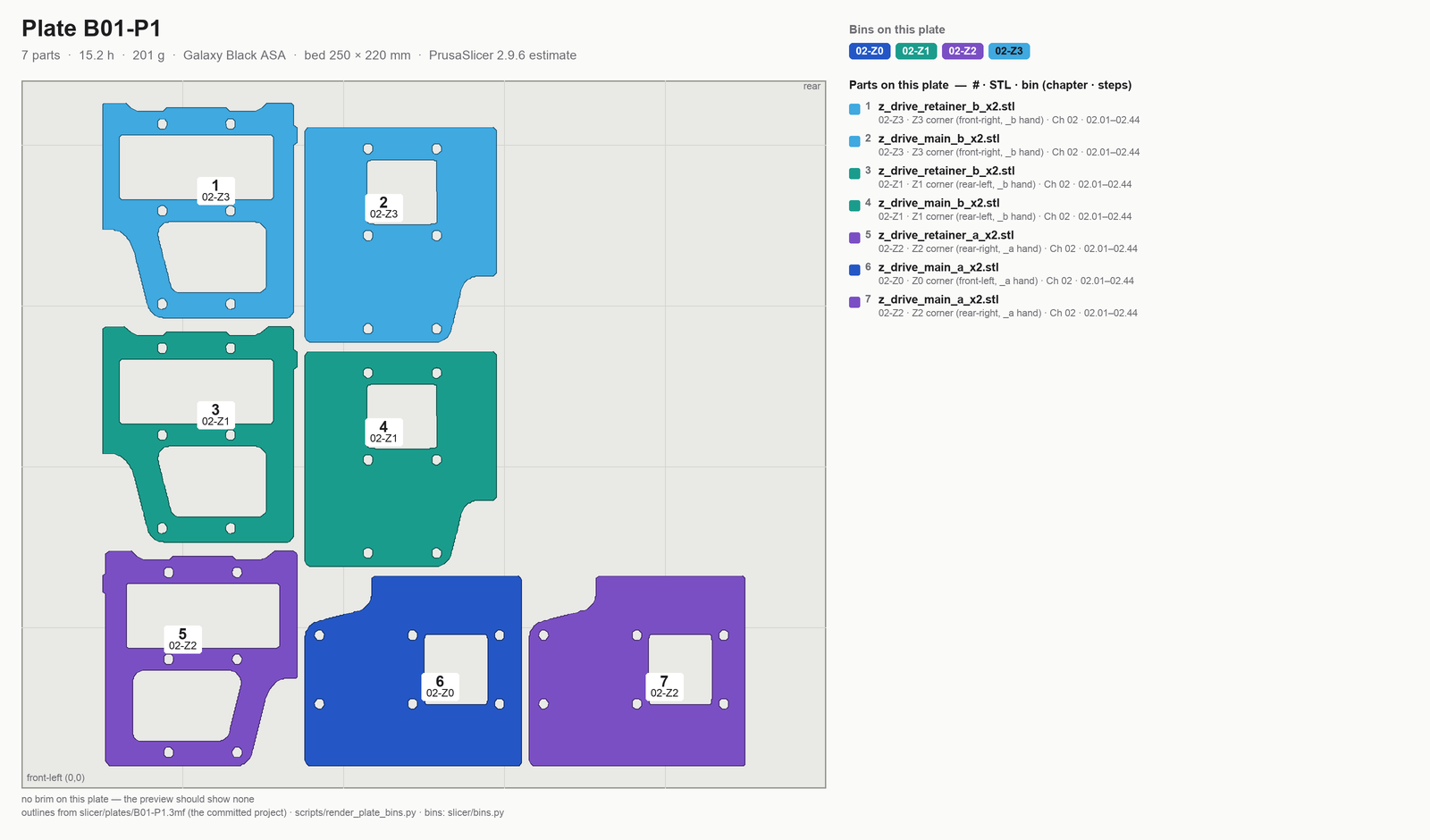

• Steps B01.1–B01.4 · ~5 min — z_drive_main_a ×2 — from bin 02-Z0, 02-Z2 · z_drive_main_b ×2 — from bin 02-Z1, 02-Z3 · z_drive_retainer_a ×1 — from bin 02-Z0, 02-Z2 · z_drive_retainer_b — 15.2 h, 201 g (PrusaSlicer 2.9.6 estimate) ×2 — from bin 02-Z1, 02-Z3

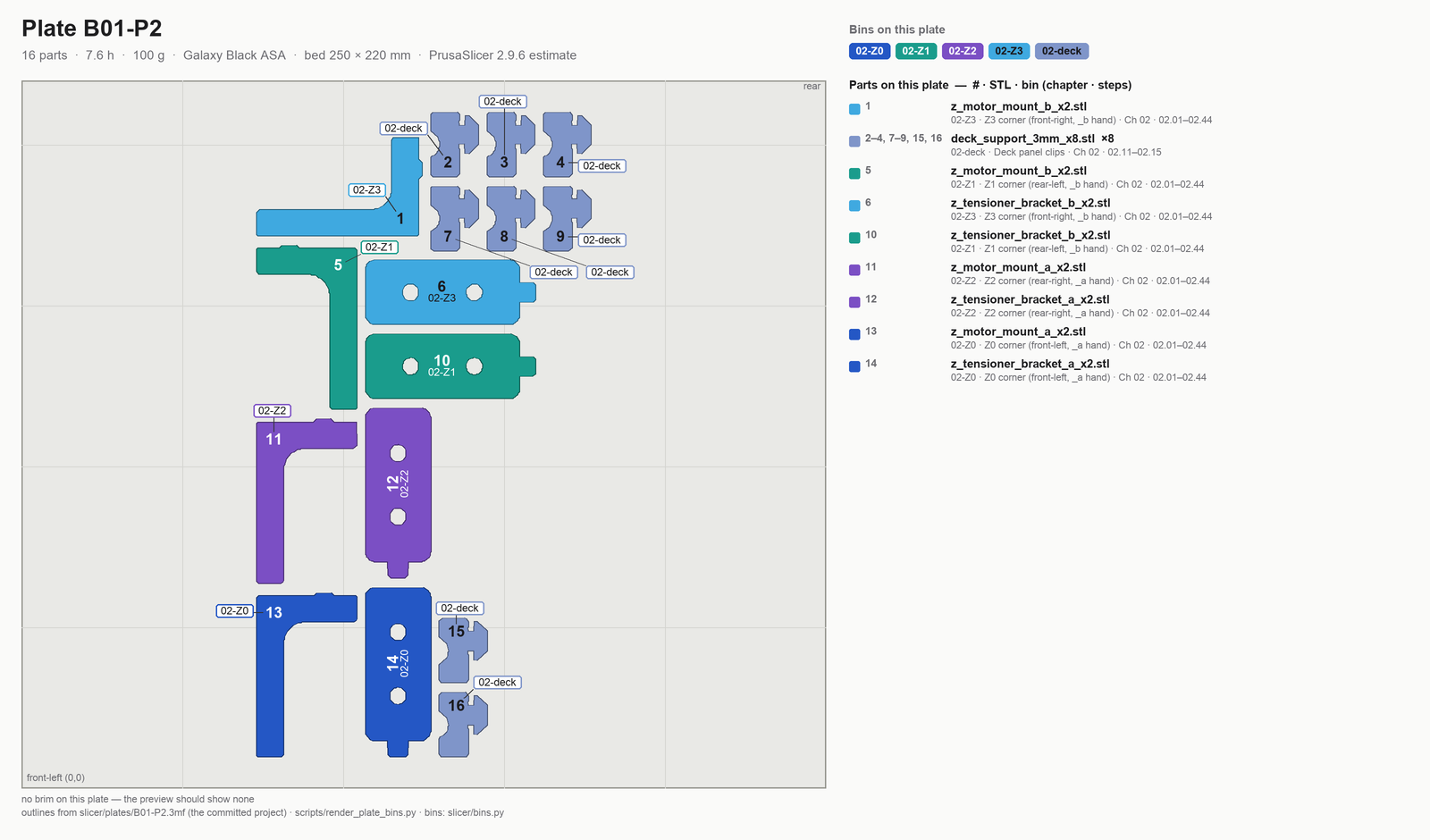

• Steps B01.5–B01.7 · ~15 min — z_motor_mount_a ×2 — from bin 02-Z0, 02-Z2 · z_motor_mount_b ×2 — from bin 02-Z1, 02-Z3 · z_tensioner_bracket_a ×2 — from bin 02-Z0, 02-Z2 · z_tensioner_bracket_b ×2 — from bin 02-Z1, 02-Z3 · deck_support_3mm — 7.6 h, 100 g (PrusaSlicer 2.9.6 estimate) ×8 — from bin 02-deck
• Step B01.8 · ~10 min — nothing to lay out
