Batch B05 — Z joints + Z chain

Time: 6.4 h · Sessions: 1 plate start · Steps: 5

Start the chapter · Resume · Read the whole chapter on one page

StartBefore you start

Step B05.1Filament prep

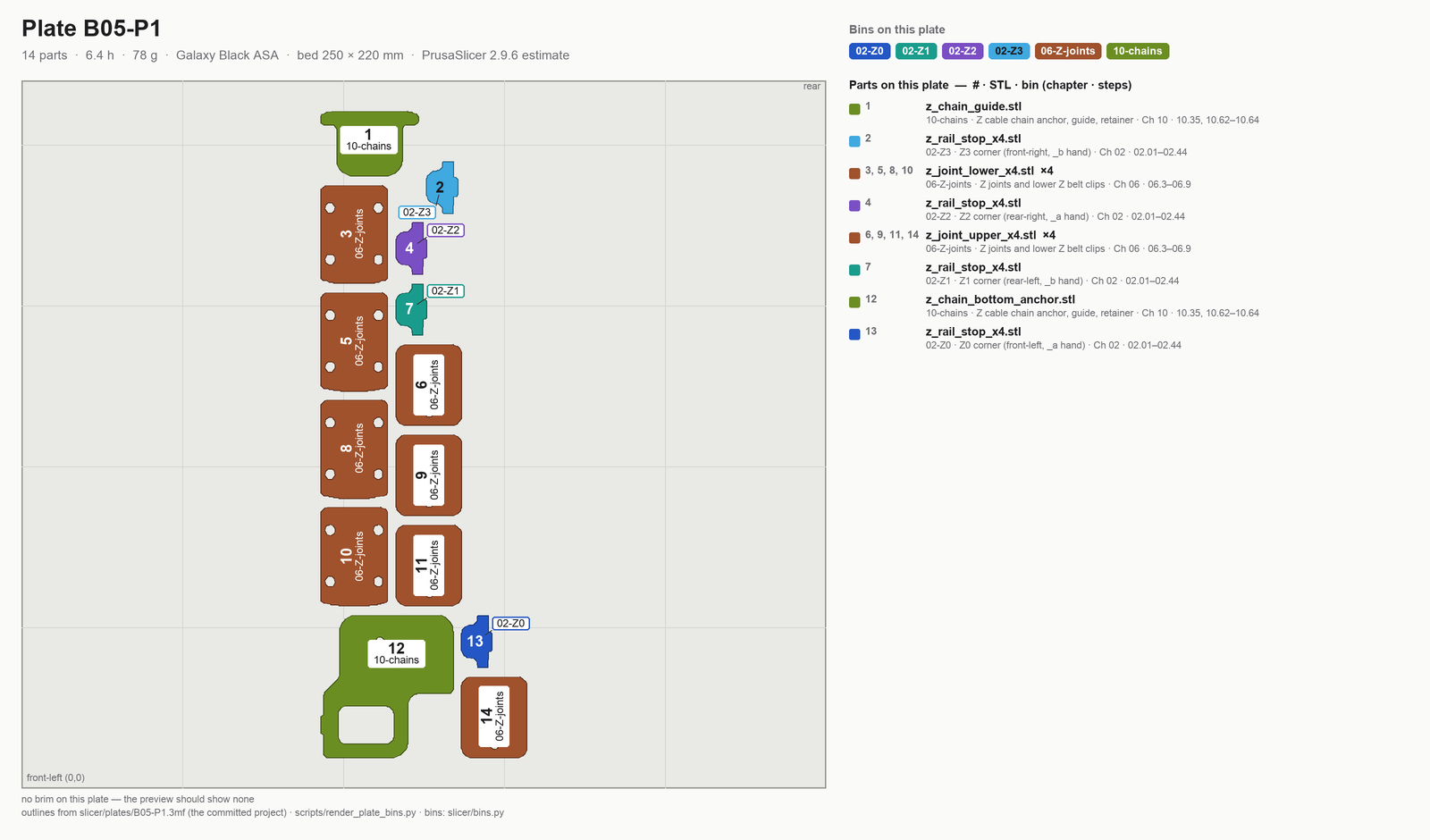

Step B05.2Load plate B05-P1with a helper

Step B05.3Print

Step B05.4Inspect

Step B05.5Sort into binswith a helper

Checkpoint B05Tick before moving on

Gather per session — what to lay out before each bench segment.

• Steps B05.1–B05.3 · ~5 min — the fourteen pieces above — 6.4 h, 78 g (PrusaSlicer 2.9.6 estimate) · z_joint_lower_x4 ×4 — from bin 06-Z-joints · z_joint_upper_x4 ×4 — from bin 06-Z-joints · z_chain_bottom_anchor — from bin 10-chains · z_chain_guide — from bin 10-chains · z_rail_stop_x4 ×4 — from bin 02-Z0, 02-Z1, 02-Z2, 02-Z3
• Step B05.4 · ~10 min — nothing to lay out
• Step B05.5 · ~10 min — nothing to lay out
