Batch B09 — Panels, filtration, spool¶
Start the chapter · Resume · Read the whole chapter on one page

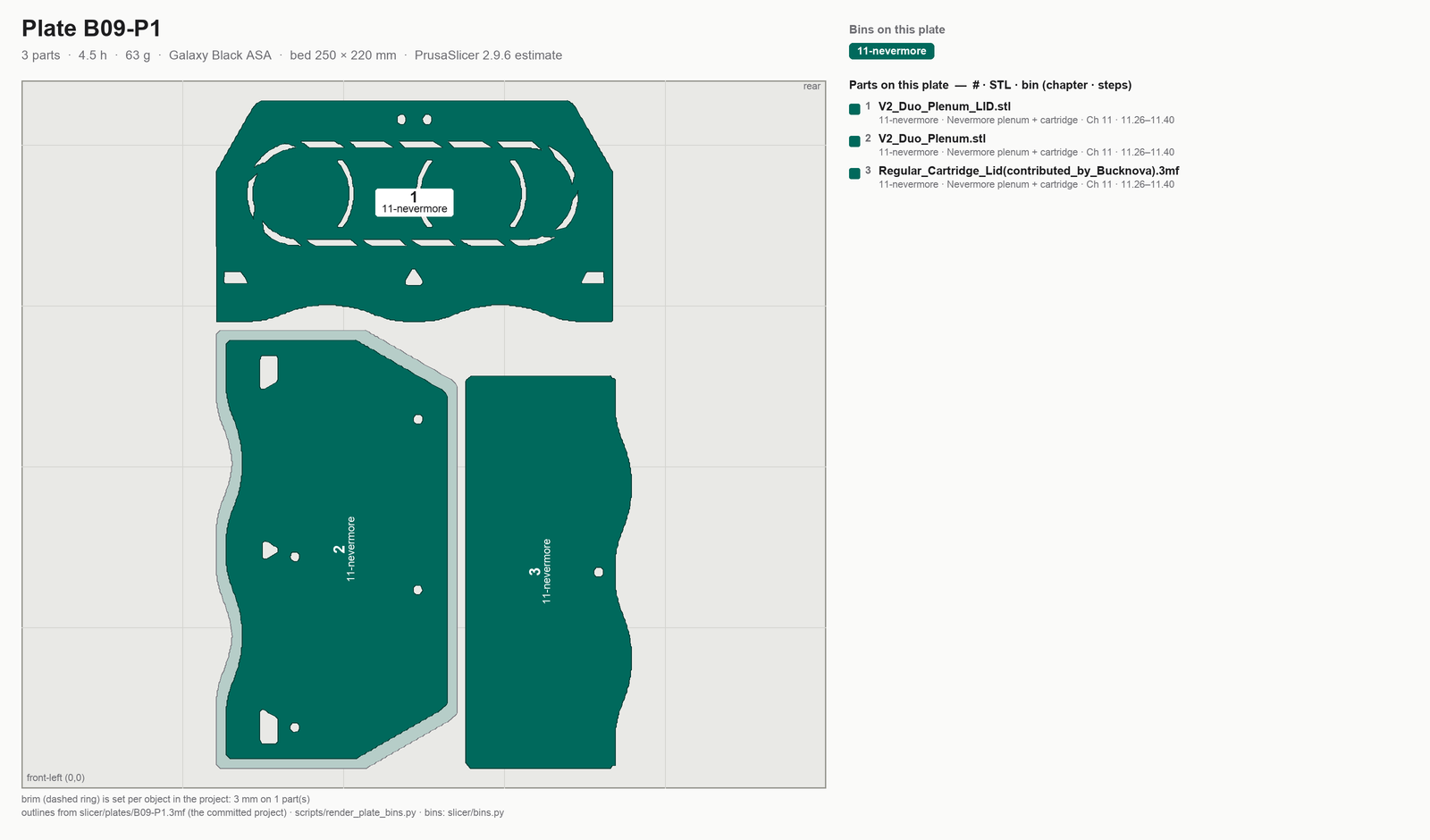

Step B09.2Load plate B09-P1with a helper

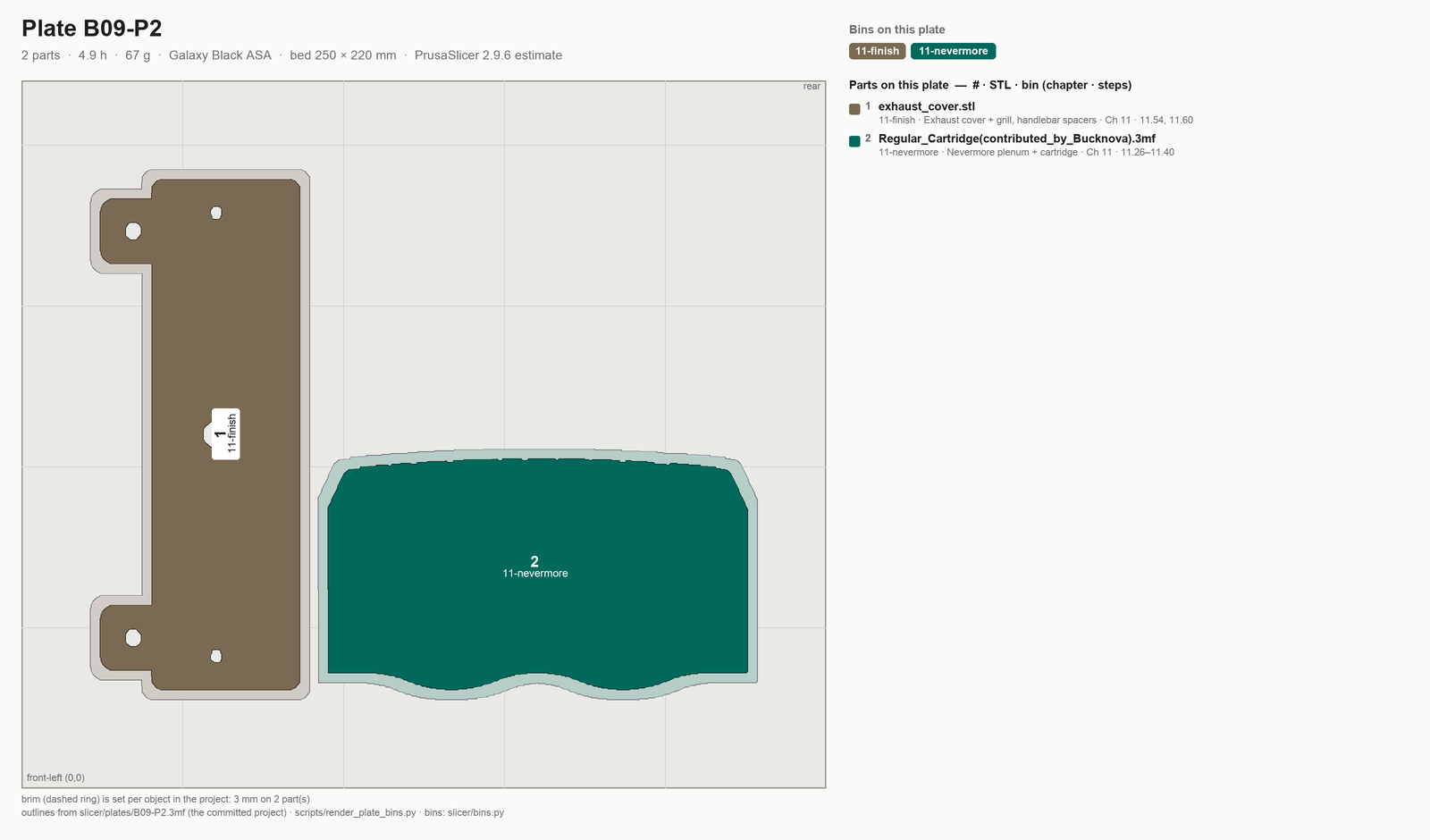

Step B09.4Load plate B09-P2with a helper

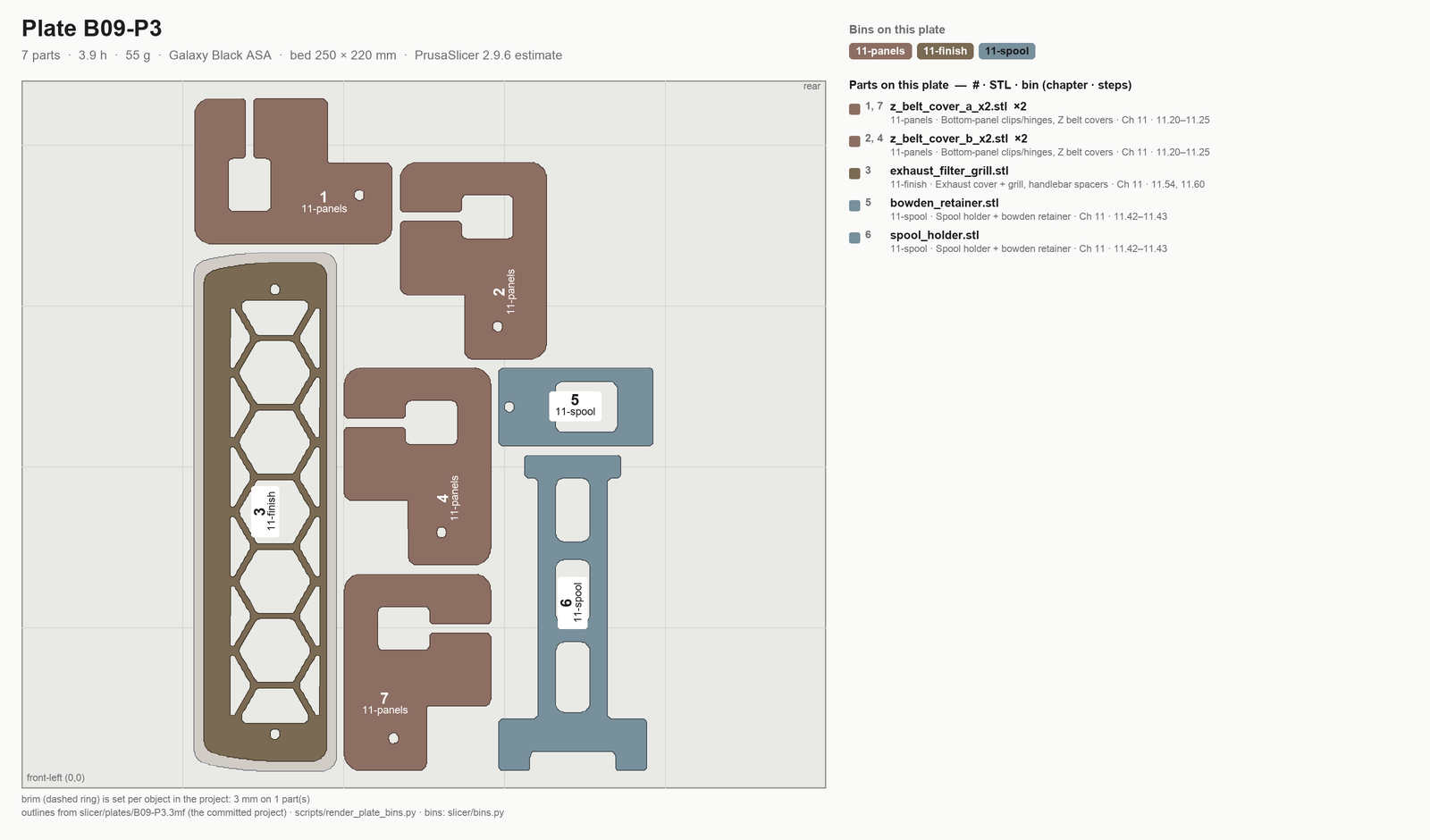

Step B09.6Load plate B09-P3with a helper

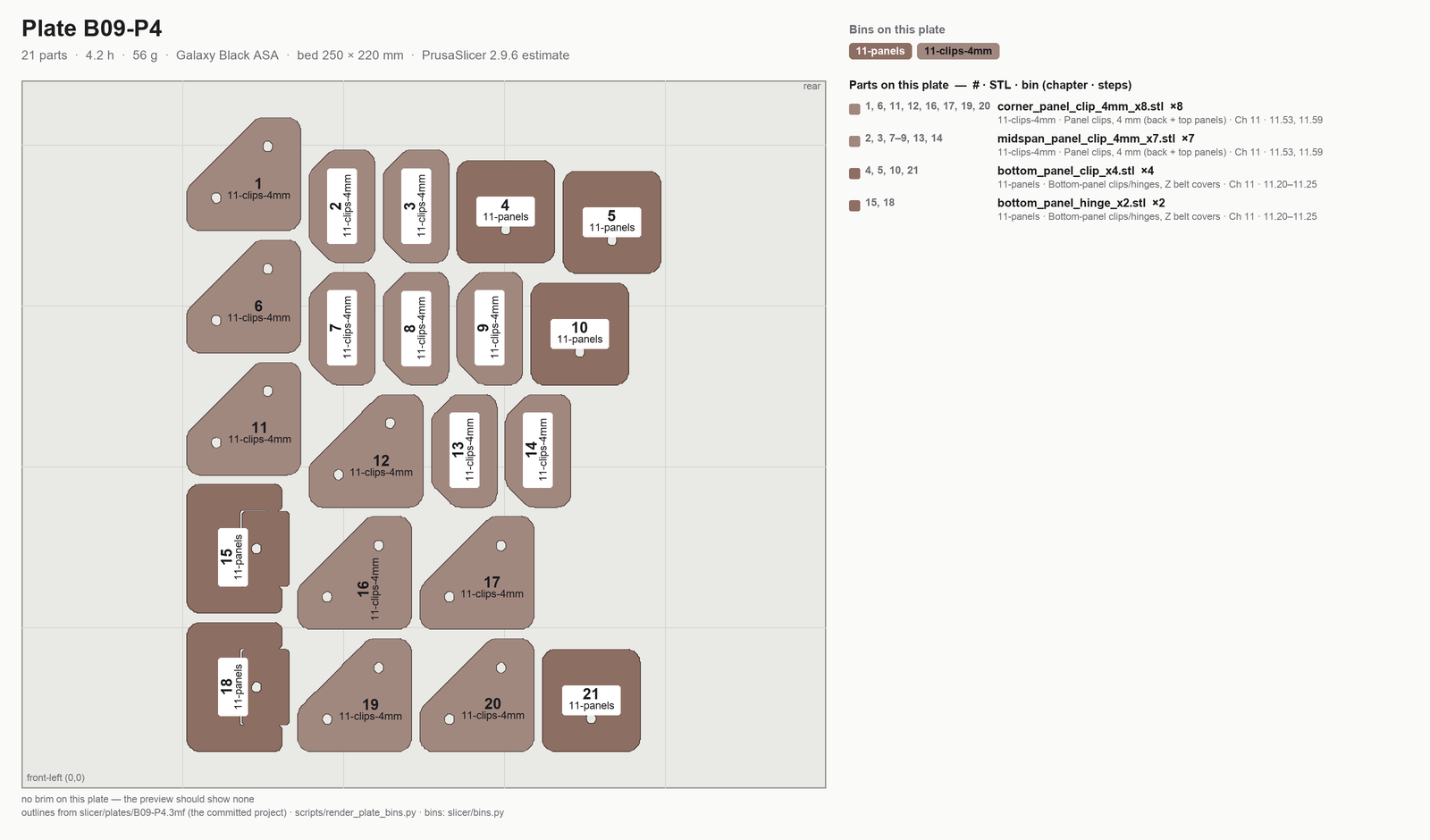

Step B09.8Load plate B09-P4with a helper

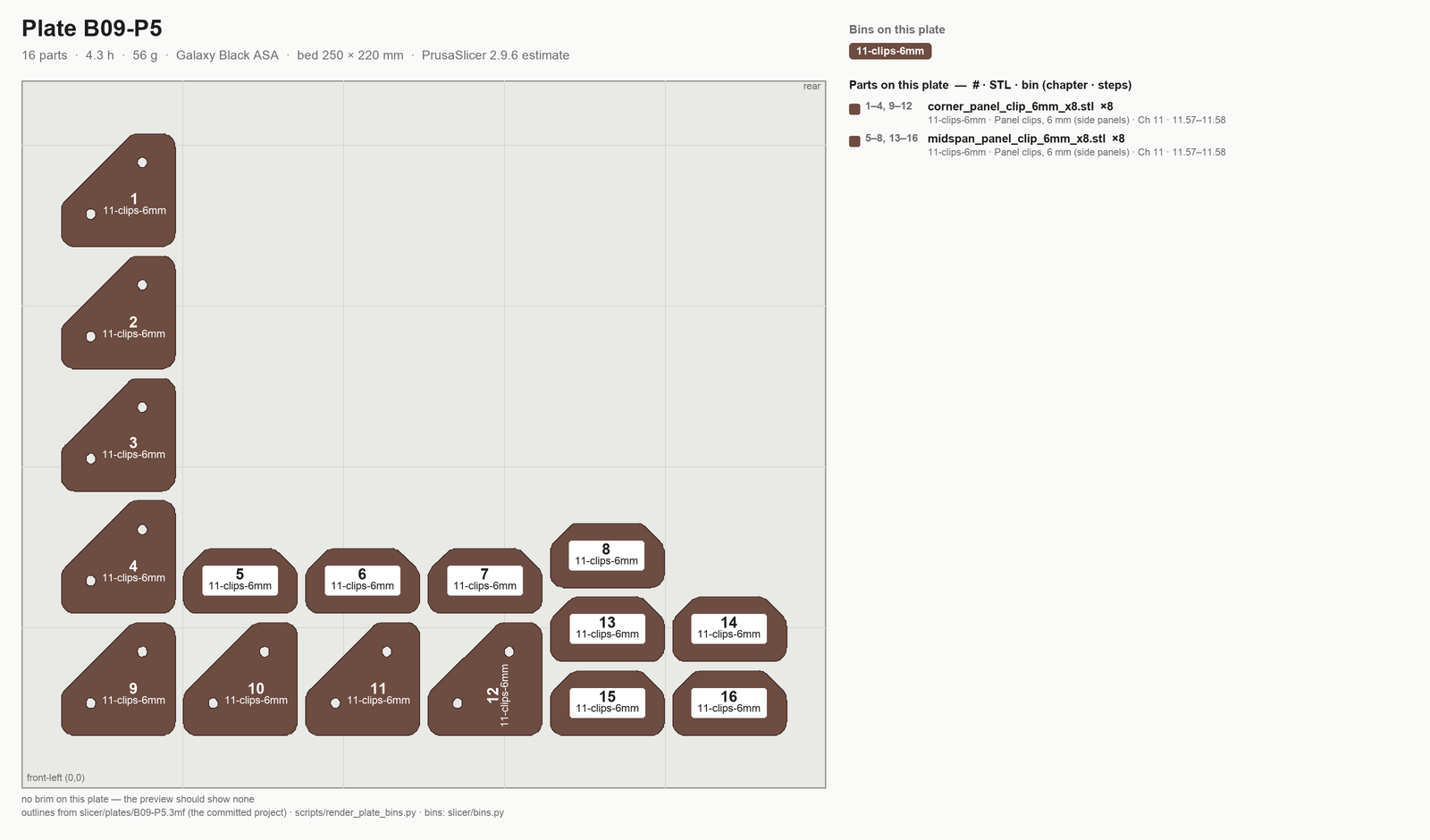

Step B09.10Load plate B09-P5with a helper
Gather per session — what to lay out before each bench segment.
- Steps B09.1–B09.3 · ~5 min —
V2_Duo_Plenum, 3 mm brim already in the project — from bin 11-nevermore ·V2_Duo_Plenum_LID, no brim — from bin 11-nevermore ·Regular_Cartridge_Lid, no brim — 4.5 h, 63 g (PrusaSlicer 2.9.6 estimate) — from bin 11-nevermore - Steps B09.4–B09.5 · ~5 min — both brims already in the project ·
Regular_Cartridge(3mf), 3 mm brim — from bin 11-nevermore ·exhaust_cover, 3 mm brim — 4.9 h, 67 g (PrusaSlicer 2.9.6 estimate) — from bin 11-finish - Steps B09.6–B09.7 · ~5 min — 5 files, 7 objects — 3.9 h, 55 g (PrusaSlicer 2.9.6 estimate) ·
exhaust_filter_grill, 3 mm brim already in the project — from bin 11-finish ·spool_holder, no brim — from bin 11-spool ·bowden_retainer, no brim — from bin 11-spool ·z_belt_cover_a, no brim ×2 — from bin 11-panels ·z_belt_cover_b, no brim ×2 — from bin 11-panels - Steps B09.8–B09.9 · ~5 min — 4 files, 21 pieces — 4.2 h, 56 g (PrusaSlicer 2.9.6 estimate) · no brim in the project ·
corner_panel_clip_4mm×8 — from bin 11-clips-4mm ·midspan_panel_clip_4mm×7 — from bin 11-clips-4mm ·bottom_panel_hinge×2 — from bin 11-panels ·bottom_panel_clip×4 — from bin 11-panels - Steps B09.10–B09.11 · ~5 min — 2 files, 16 pieces — 4.3 h, 56 g (PrusaSlicer 2.9.6 estimate) · no brim in the project ·
corner_panel_clip_6mm×8 — from bin 11-clips-6mm ·midspan_panel_clip_6mm×8 — from bin 11-clips-6mm - Step B09.12 · ~10 min — nothing to lay out
- Step B09.13 · ~15 min — nothing to lay out
