Chapter 00a — Mains safety: read before Chapter 09

Time: 0.75–1.0 h hands-on, first build · Sessions: 2 × ~30 min · Steps: 12

Start the chapter · Resume · Read the whole chapter on one page

StartBefore you start

Step 00a.1Decide who is doing the mains work

Step 00a.2Write the "who is in the room" rule and post it on the wall

Step 00a.3Buy a meter that is rated for the job

Step 00a.4Test the meter before you trust it, and again after

Step 00a.5Put the printer on an RCD/GFCI outlet you can reach

Step 00a.6Learn the protective-earth chain in this build

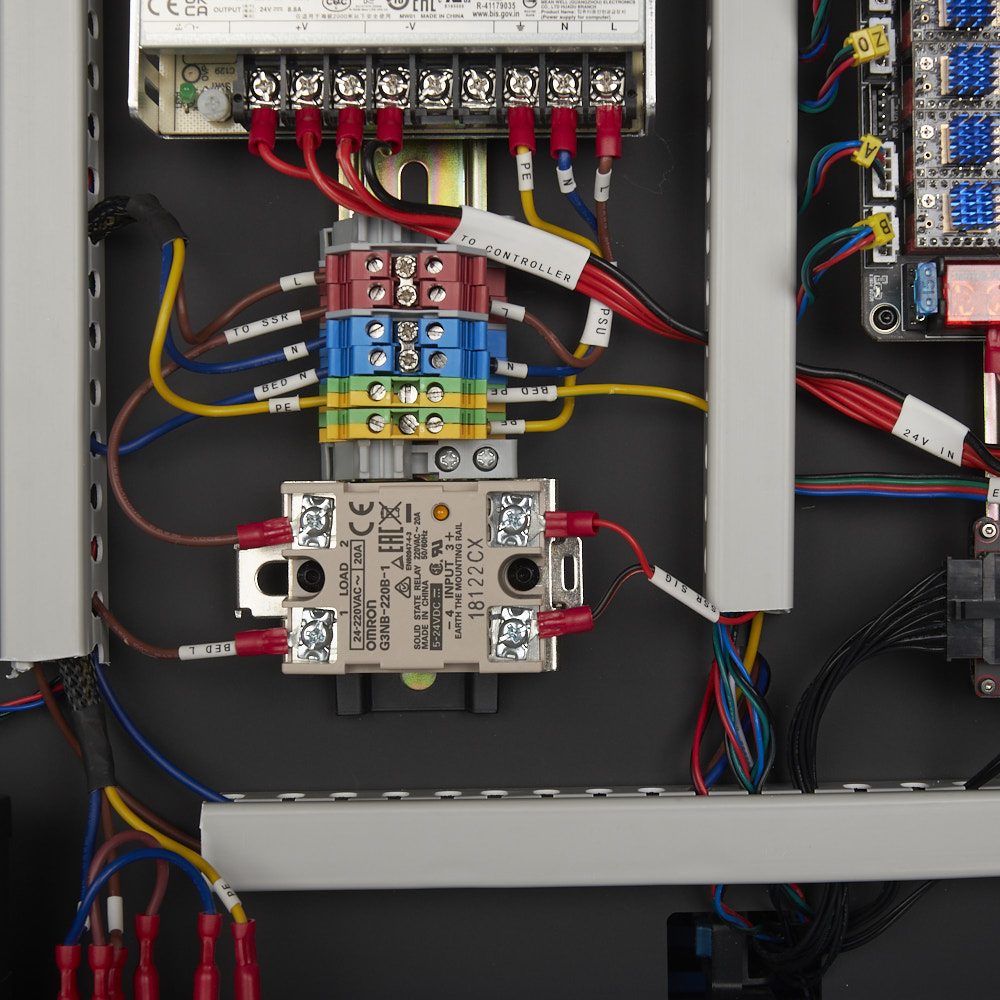

Step 00a.7The SSR is marked "earth the mounting rail" and this build does not

Step 00a.8Ferrules and the no-whisker rule

Step 00a.9Strain relief: nothing may pull on a terminal

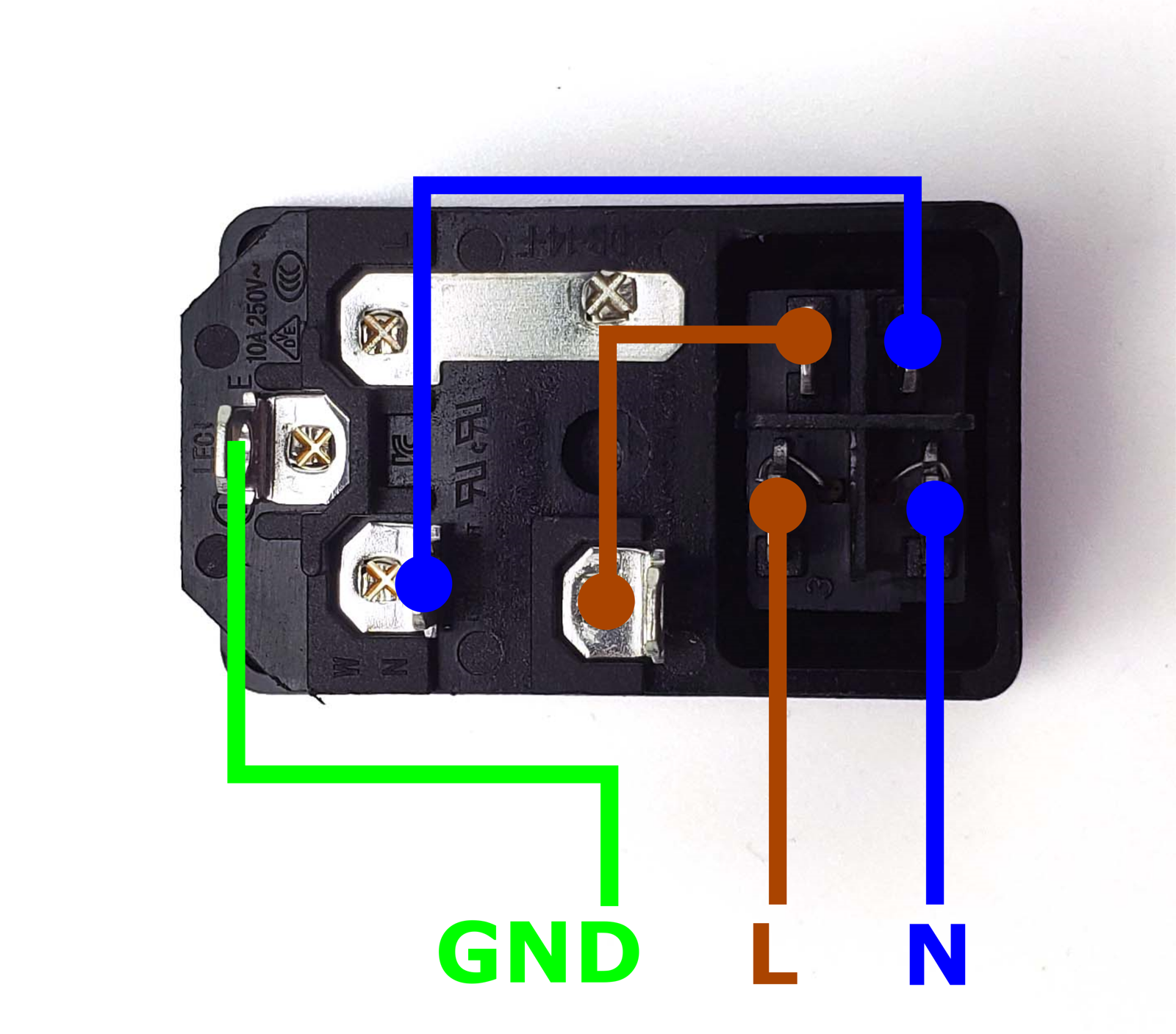

Step 00a.10The fuse in the inlet, and what it does not protect

Step 00a.11Know the two power-on rituals before either one arrives

Step 00a.12Decide now what you do when it smokes, trips or bites

Checkpoint 00aTick before moving on

Gather per session — what to lay out before each bench segment.

• Steps 00a.1–00a.5 · ~30 min — Tools and consumables: multimeter with its rated leads; a known-live wall outlet
• Steps 00a.6–00a.12 · ~25 min — nothing to lay out
