Batch B04 — XY joints + X carriage

Time: 8.6 h · Sessions: 1 plate start · Steps: 6

Start the chapter · Resume · Read the whole chapter on one page

StartBefore you start

Step B04.1Filament prep

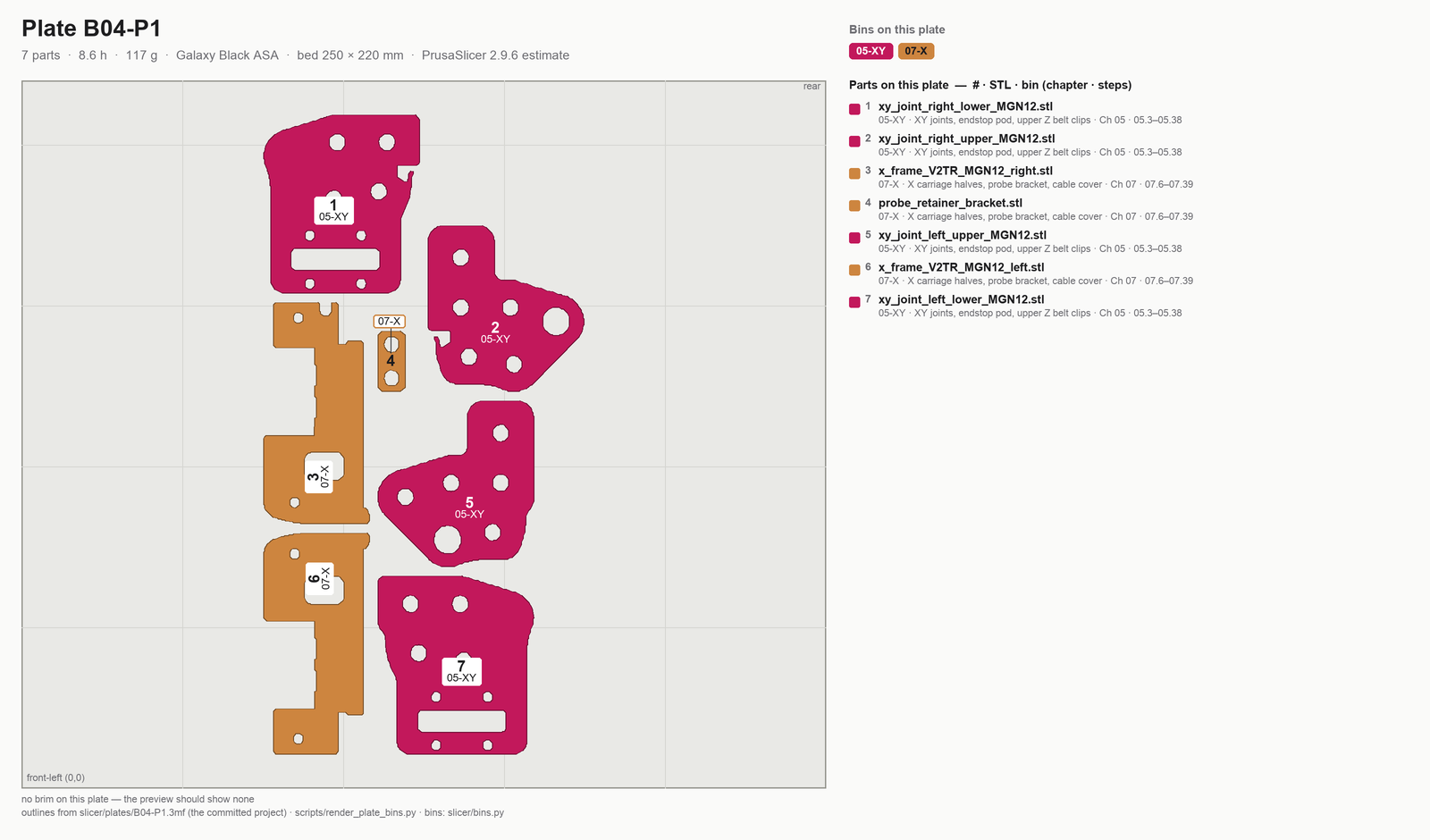

Step B04.2Load plate B04-P1with a helper

Step B04.3Pre-print checks

Step B04.4Print

Step B04.5Inspect

Step B04.6Sort into binswith a helper

Checkpoint B04Tick before moving on

Gather per session — what to lay out before each bench segment.

• Steps B04.1–B04.4 · ~5 min — all seven — 8.6 h, 117 g (PrusaSlicer 2.9.6 estimate) · xy_joint_left_lower_MGN12 — from bin 05-XY · xy_joint_left_upper_MGN12 — from bin 05-XY · xy_joint_right_lower_MGN12 — from bin 05-XY · xy_joint_right_upper_MGN12 — from bin 05-XY · x_frame_V2TR_MGN12_left — from bin 07-X · x_frame_V2TR_MGN12_right — from bin 07-X · probe_retainer_bracket — from bin 07-X
• Step B04.5 · ~10 min — nothing to lay out
• Step B04.6 · ~10 min — nothing to lay out
