Batch B11 — Bay ducting (PETG V0)

Time: 25.0 h · Sessions: 5 plate starts · Steps: 14

Start the chapter · Resume · Read the whole chapter on one page

StartBefore you start

Step B11.1Filament and sheet prep

Step B11.2Pre-print checks

Step B11.3Load and print plate B11-P1

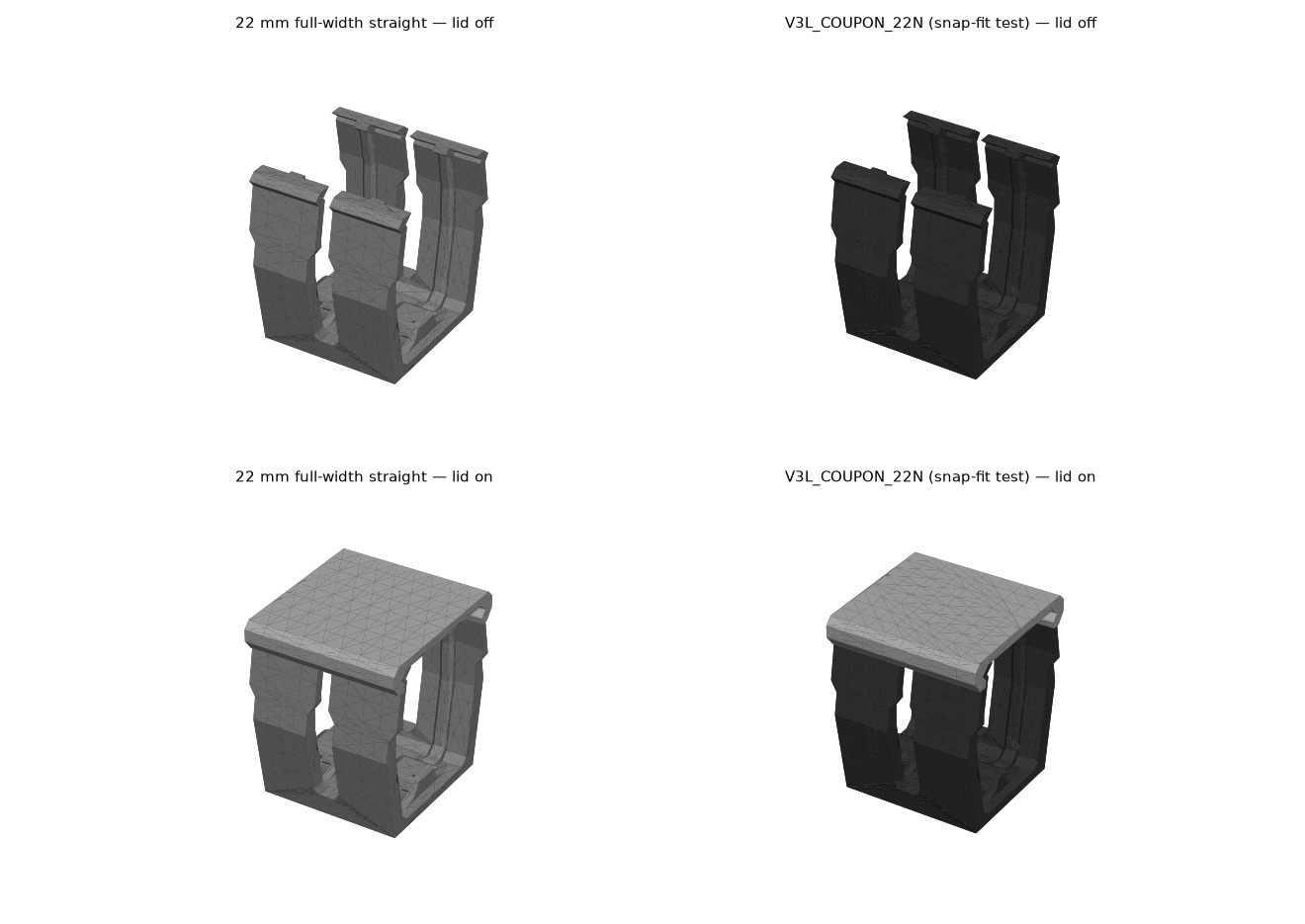

Step B11.4Test the coupon's lid snap

Step B11.5Load and print plate B11-P2

Step B11.6Load and print plate B11-P3

Step B11.7Inspect the before-kit plates

Step B11.8Sort into binswith a helper

Step B11.9Confirm the A/B motor leads after Checkpoint 06

Step B11.10Measure the gaps the custom pieces fillwith a helper

Step B11.11Regenerate a piece whose gap differs

Step B11.12Load and print plate B11-P4

Step B11.13Load and print plate B11-P5

Step B11.14Sort the after-kit plates into binswith a helper

Checkpoint B11Tick before moving on

Gather per session — what to lay out before each bench segment.

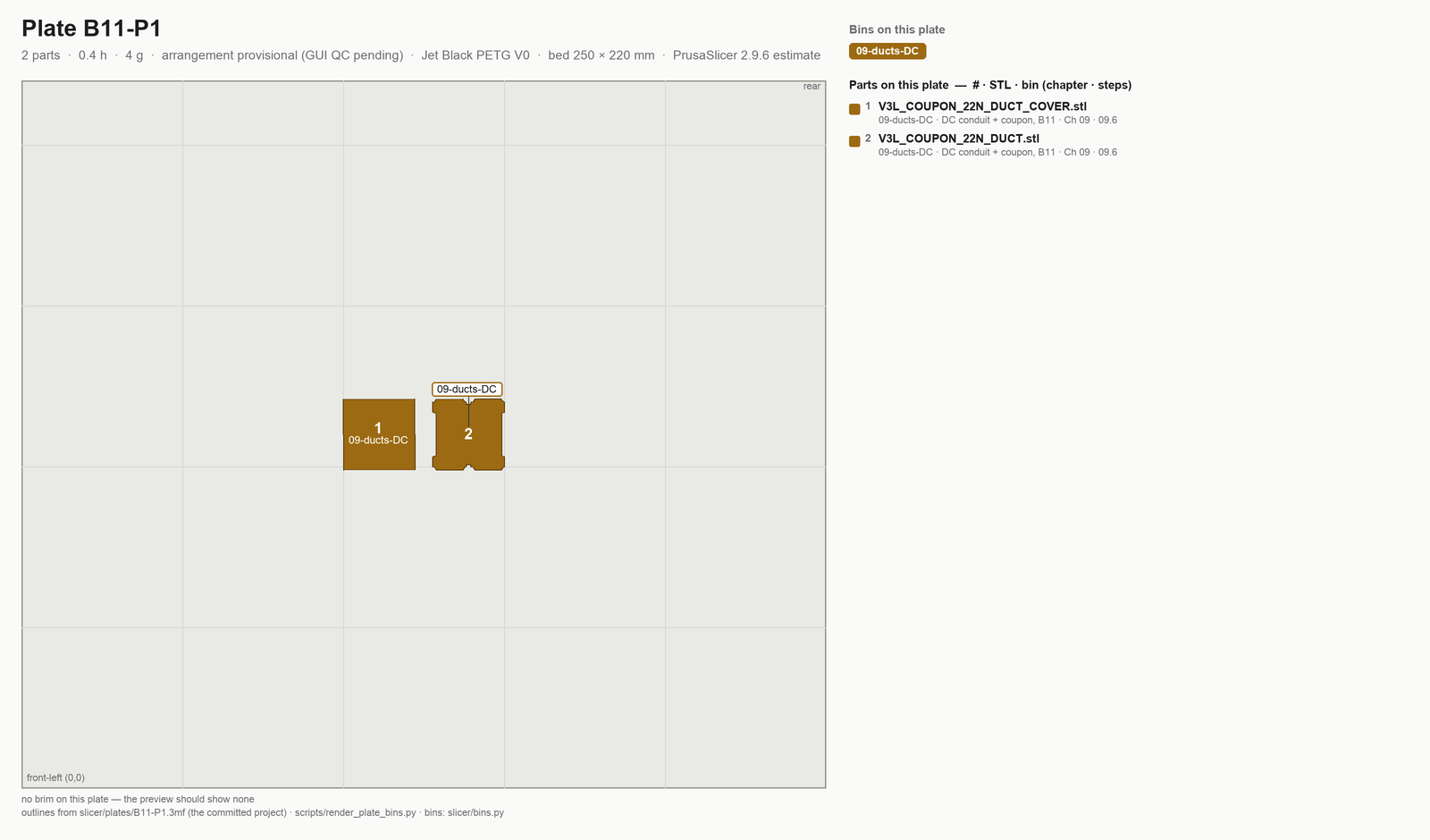

  • Steps B11.1–B11.3 · ~5 min — 2 files, 2 objects — 0.4 h, 4 g (PrusaSlicer 2.9.6 estimate) · no brim · V3L_COUPON_22N_DUCT — from bin 09-ducts-DC · V3L_COUPON_22N_DUCT_COVER — from bin 09-ducts-DC
  • Step B11.4 · ~10 min — nothing to lay out

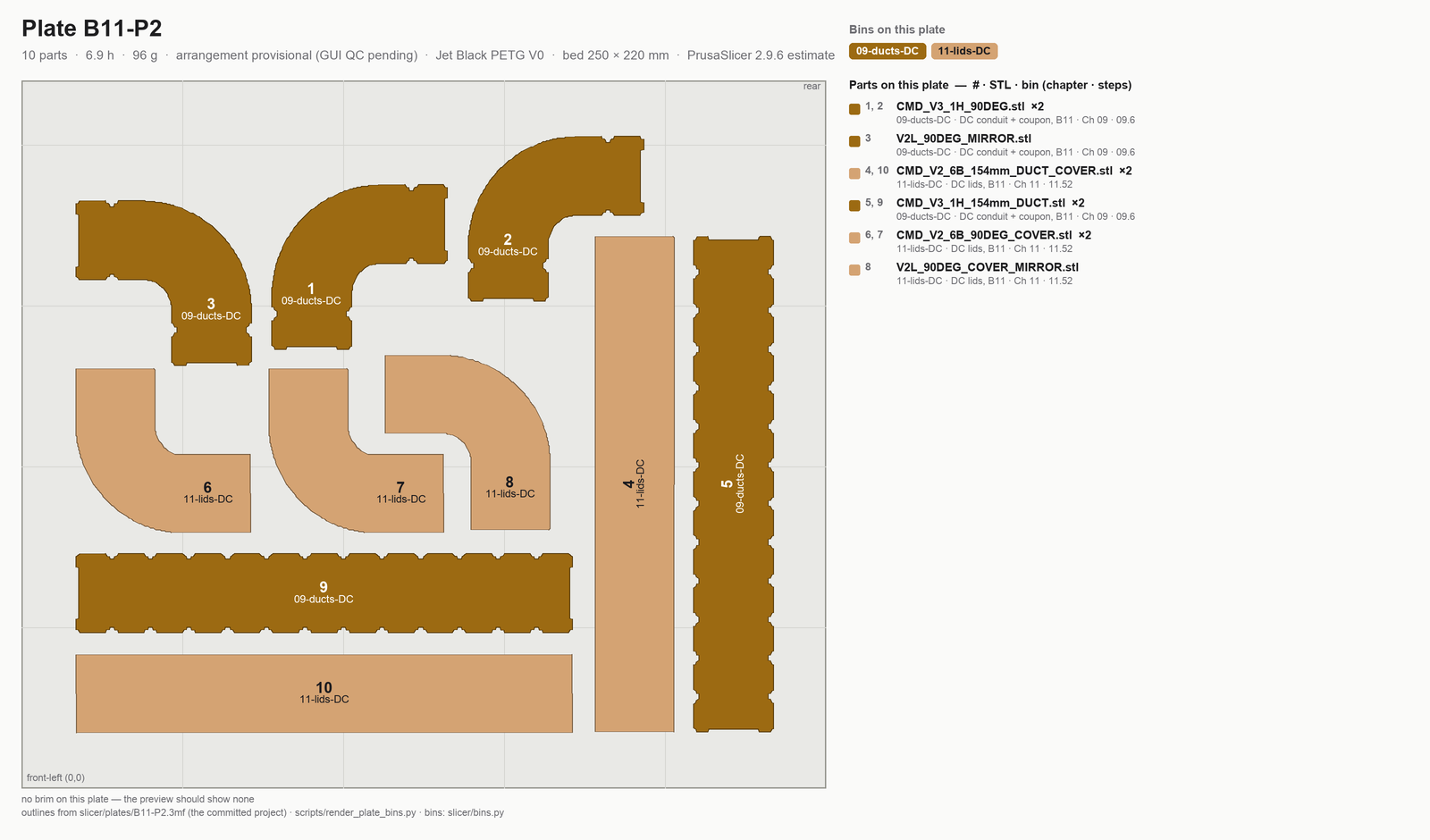

  • Step B11.5 · ~5 min — 6 files, 10 objects — 6.9 h, 96 g (PrusaSlicer 2.9.6 estimate) · no brim · CMD_V3_1H_154mm_DUCT ×2 — from bin 09-ducts-DC · CMD_V2_6B_154mm_DUCT_COVER ×2 — from bin 11-lids-DC · CMD_V3_1H_90DEG ×2 — from bin 09-ducts-DC · CMD_V2_6B_90DEG_COVER ×2 — from bin 11-lids-DC · V2L_90DEG_MIRROR — from bin 09-ducts-DC · V2L_90DEG_COVER_MIRROR — from bin 11-lids-DC

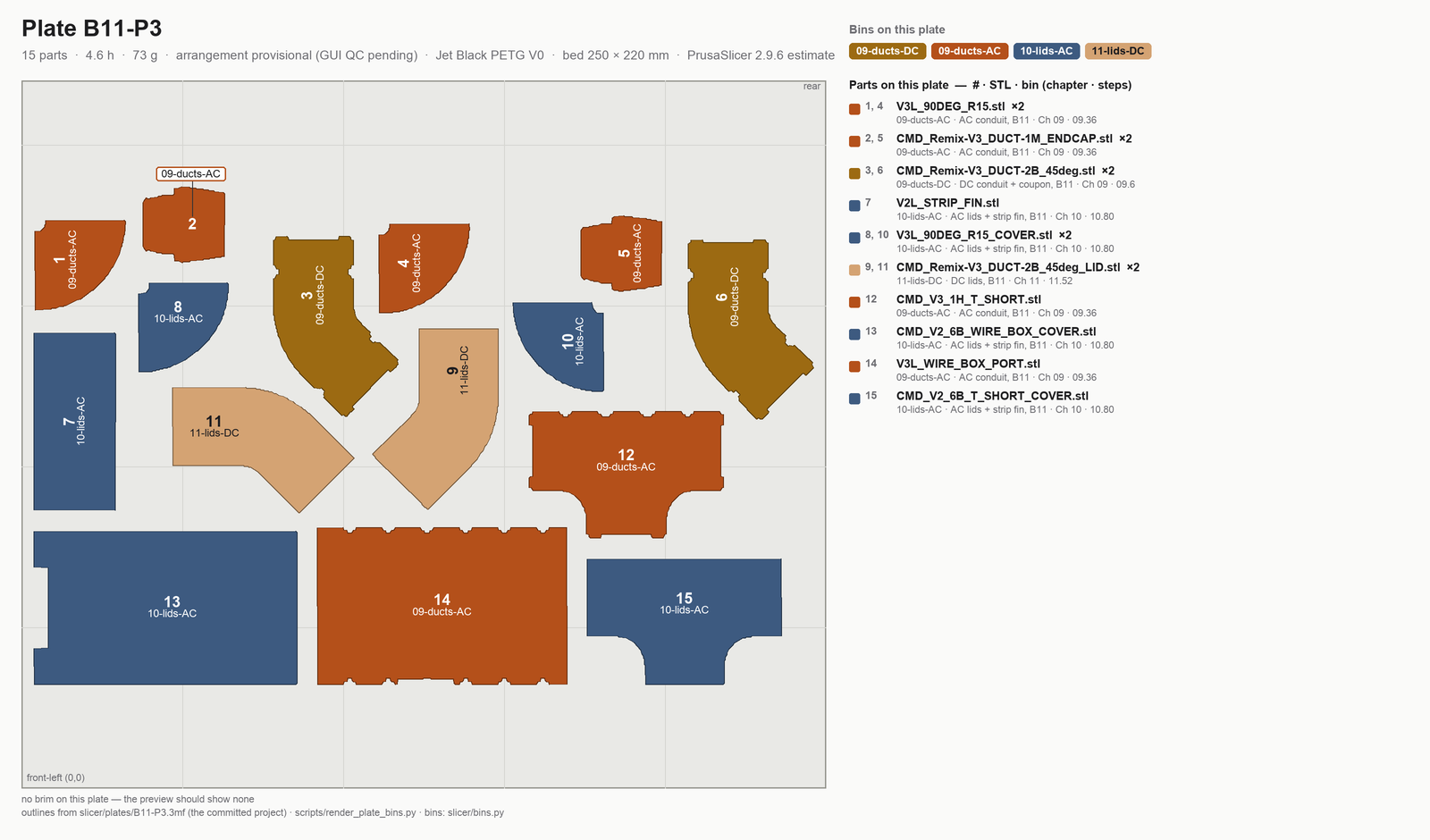

  • Step B11.6 · ~5 min — 10 files, 15 objects — 4.6 h, 73 g (PrusaSlicer 2.9.6 estimate) · no brim · V3L_WIRE_BOX_PORT — from bin 09-ducts-AC · CMD_V2_6B_WIRE_BOX_COVER — from bin 10-lids-AC · V3L_90DEG_R15 ×2 — from bin 09-ducts-AC · V3L_90DEG_R15_COVER ×2 — from bin 10-lids-AC · CMD_V3_1H_T_SHORT — from bin 09-ducts-AC · CMD_V2_6B_T_SHORT_COVER — from bin 10-lids-AC · CMD_Remix-V3_DUCT-1M_ENDCAP ×2 — from bin 09-ducts-AC · V2L_STRIP_FIN — from bin 10-lids-AC · CMD_Remix-V3_DUCT-2B_45deg ×2 — from bin 09-ducts-DC · CMD_Remix-V3_DUCT-2B_45deg_LID ×2 — from bin 11-lids-DC
  • Step B11.7 · ~10 min — nothing to lay out
  • Step B11.8 · ~10 min — nothing to lay out
  • Step B11.9 · ~15 min — nothing to lay out
  • Step B11.10 · ~20 min — nothing to lay out
  • Step B11.11 · ~15 min — nothing to lay out

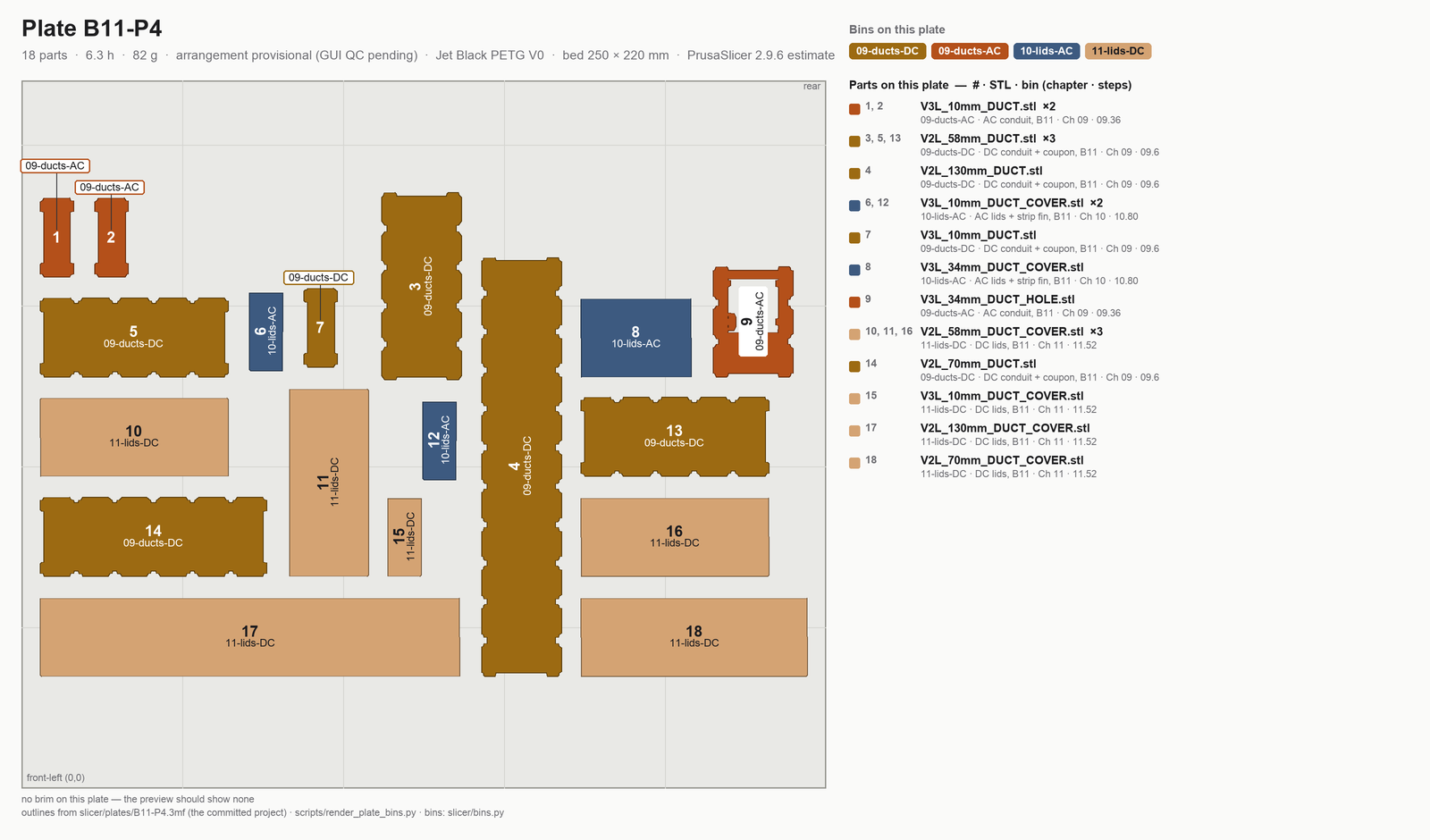

  • Step B11.12 · ~5 min — 10 files, 18 objects — 6.3 h, 82 g (PrusaSlicer 2.9.6 estimate) · no brim · V2L_58mm_DUCT ×3 — from bin 09-ducts-DC · V2L_58mm_DUCT_COVER ×3 — from bin 11-lids-DC · V2L_130mm_DUCT — from bin 09-ducts-DC · V2L_130mm_DUCT_COVER — from bin 11-lids-DC · V2L_70mm_DUCT — from bin 09-ducts-DC · V2L_70mm_DUCT_COVER — from bin 11-lids-DC · V3L_10mm_DUCT ×3 — from bin 09-ducts-DC, 09-ducts-AC · V3L_10mm_DUCT_COVER ×3 — from bin 11-lids-DC, 10-lids-AC · V3L_34mm_DUCT_HOLE — from bin 09-ducts-AC · V3L_34mm_DUCT_COVER — from bin 10-lids-AC

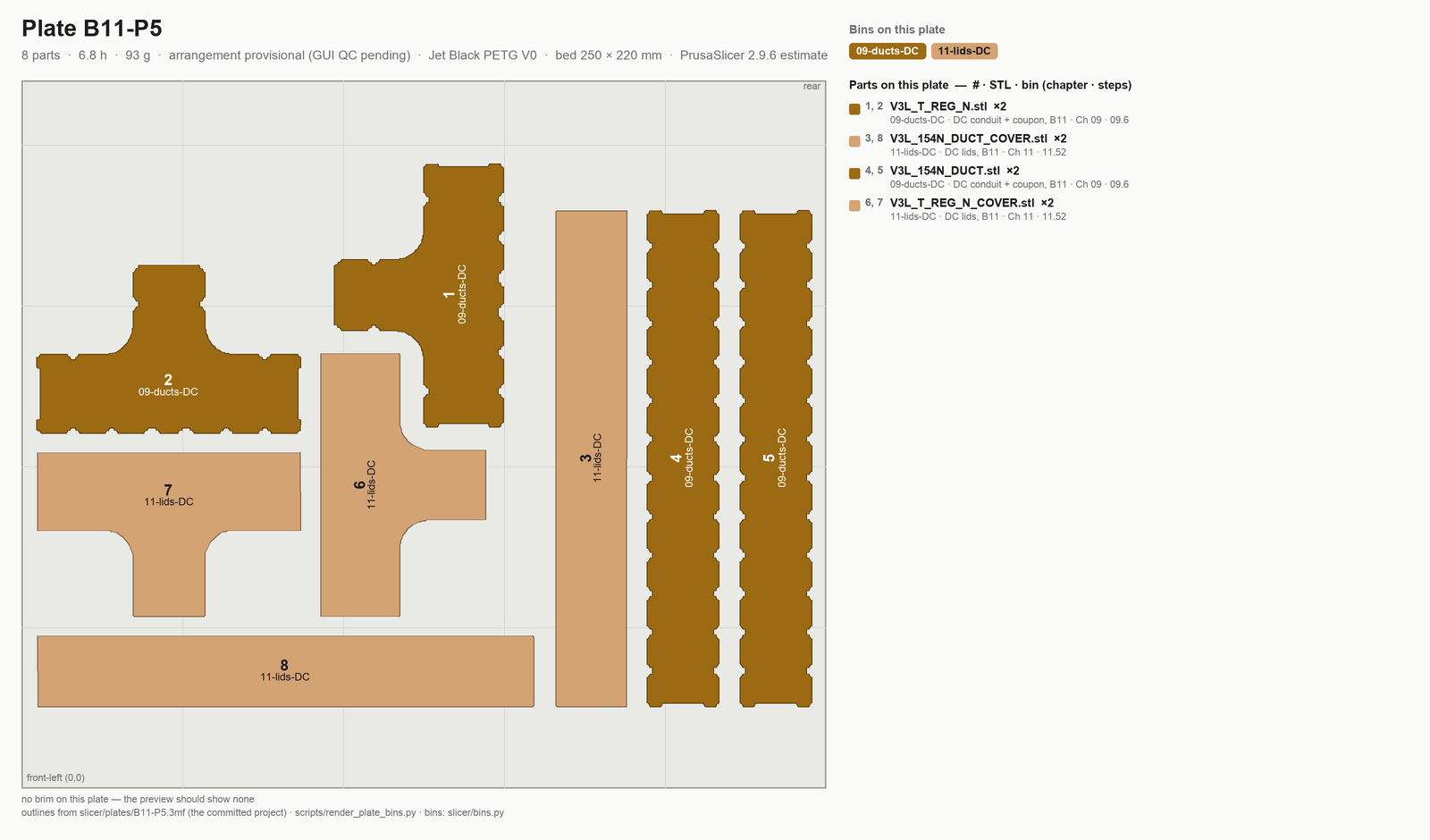

  • Step B11.13 · ~5 min — 4 files, 8 objects — 6.8 h, 93 g (PrusaSlicer 2.9.6 estimate) · no brim · V3L_154N_DUCT ×2 — from bin 09-ducts-DC · V3L_154N_DUCT_COVER ×2 — from bin 11-lids-DC · V3L_T_REG_N ×2 — from bin 09-ducts-DC · V3L_T_REG_N_COVER ×2 — from bin 11-lids-DC
  • Step B11.14 · ~10 min — nothing to lay out
