Batch B07 — Electronics bay + lighting

Time: 16.0 h · Sessions: 2 plate starts · Steps: 7

Start the chapter · Resume · Read the whole chapter on one page

StartBefore you start

Step B07.1Filament prep

Step B07.2Load plate B07-P1with a helper

Step B07.3Print plate B07-P1

Step B07.4Load plate B07-P2with a helper

Step B07.5Print plate B07-P2

Step B07.6Inspect

Step B07.7Sort into binswith a helper

Checkpoint B07Tick before moving on

Gather per session — what to lay out before each bench segment.

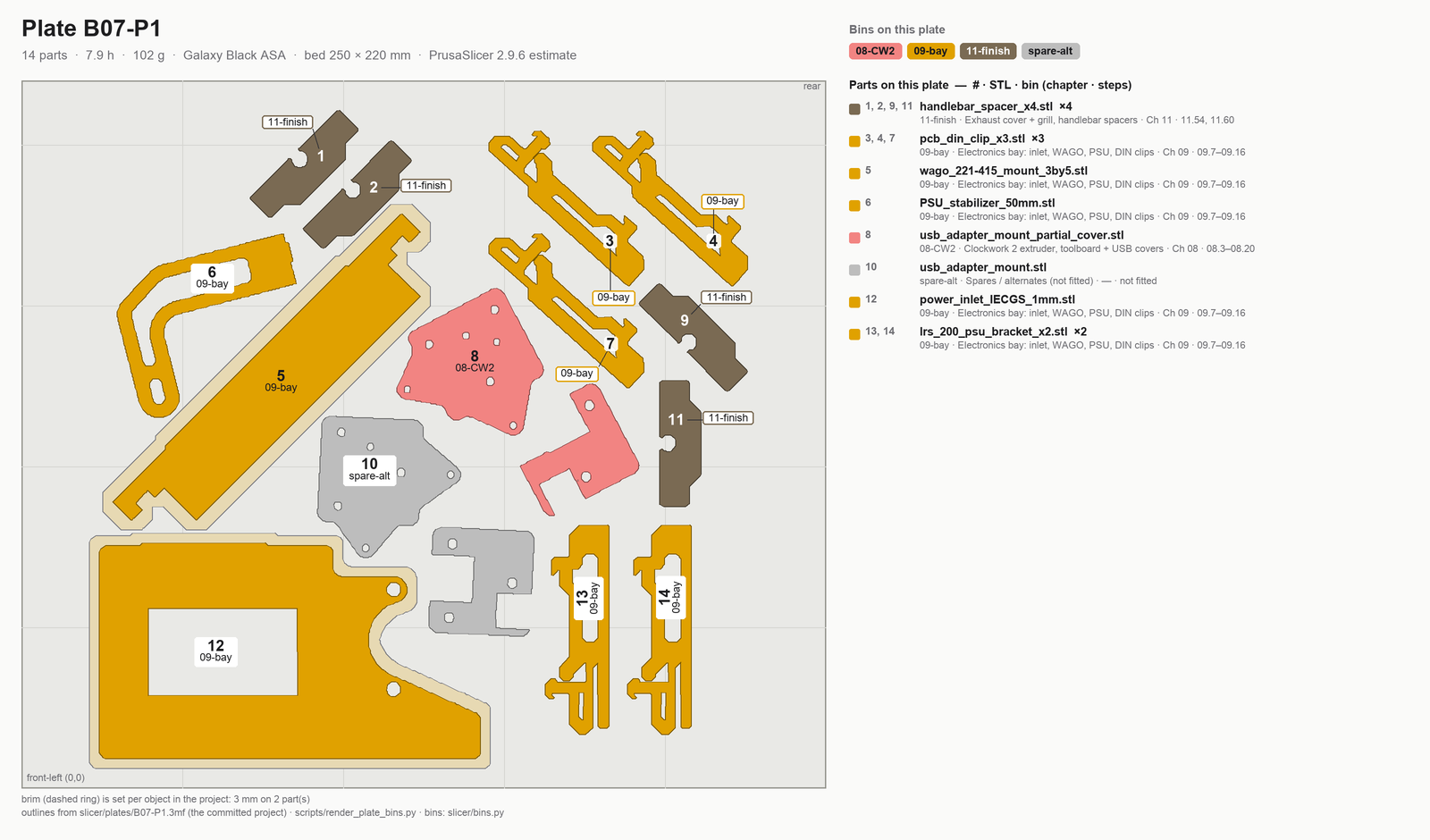

• Steps B07.1–B07.3 · ~5 min — 8 files, 14 objects — 7.9 h, 102 g (PrusaSlicer 2.9.6 estimate) · wago_221-415_mount_3by5 — from bin 09-bay · lrs_200_psu_bracket_x2 ×2 — from bin 09-bay · PSU_stabilizer_50mm — from bin 09-bay · usb_adapter_mount — from bin spare-alt · usb_adapter_mount_partial_cover (ground-lug mount, est.) ×1 — from bin 08-CW2 · pcb_din_clip_x3 ×3 — from bin 09-bay · handlebar_spacer_x4 ×4 — from bin 11-finish · power_inlet_IECGS_1mm — from bin 09-bay · 3 mm brim on wago_221-415_mount_3by5 and power_inlet_IECGS_1mm (the long-flat list), already in the project — from bin 09-bay

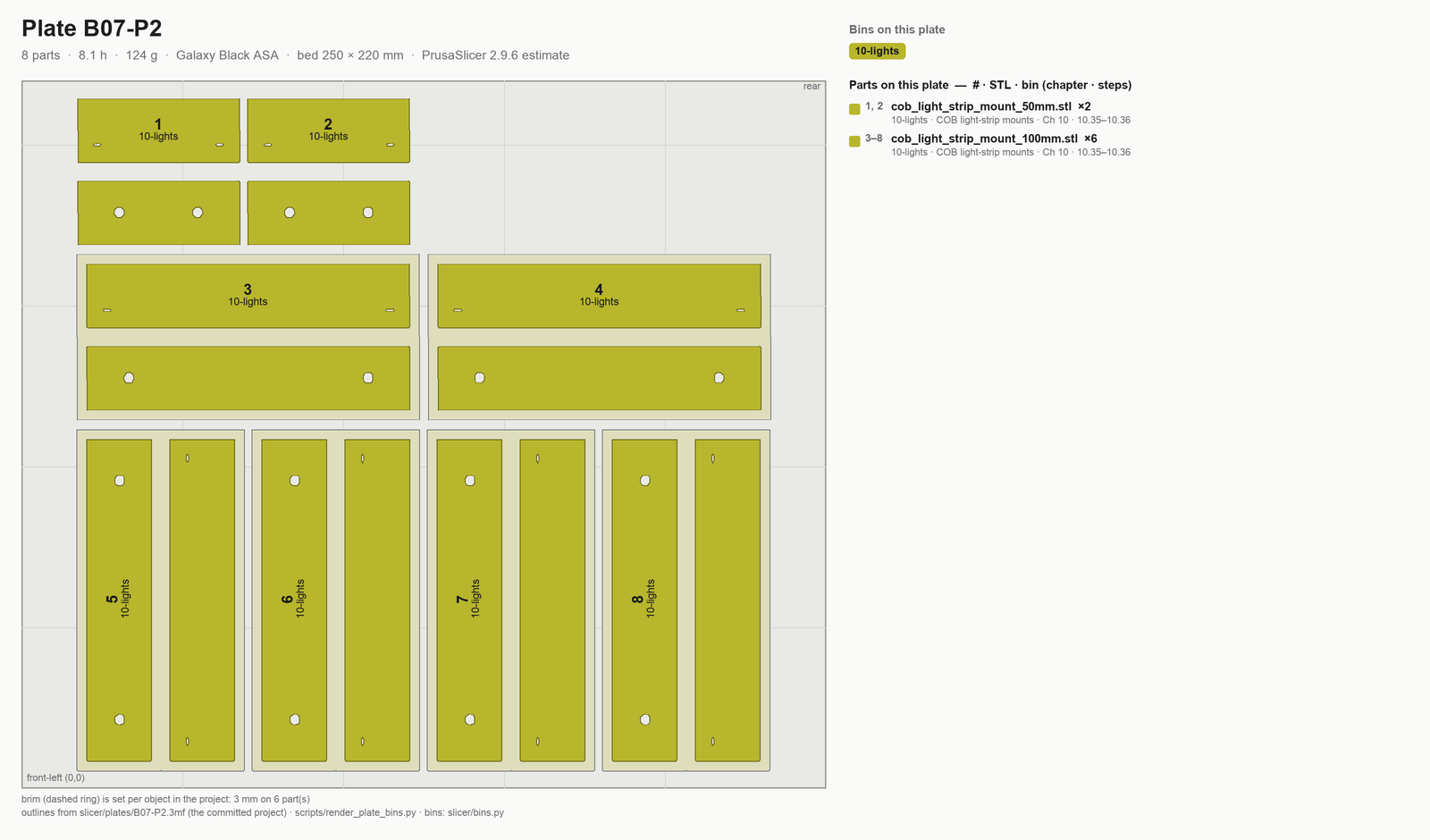

• Steps B07.4–B07.5 · ~5 min — 3 mm brim on the six 100 mm mounts, already in the project (long-flat brim list), none on the two 50 mm mounts · cob_light_strip_mount_100mm ×6 — from bin 10-lights · cob_light_strip_mount_50mm, eight mounts total, each a 2-piece assembly — 8.1 h, 124 g (PrusaSlicer 2.9.6 estimate) ×2 — from bin 10-lights
• Step B07.6 · ~15 min — nothing to lay out
• Step B07.7 · ~10 min — nothing to lay out
